Procedural Caves - Binary Space Partitioning

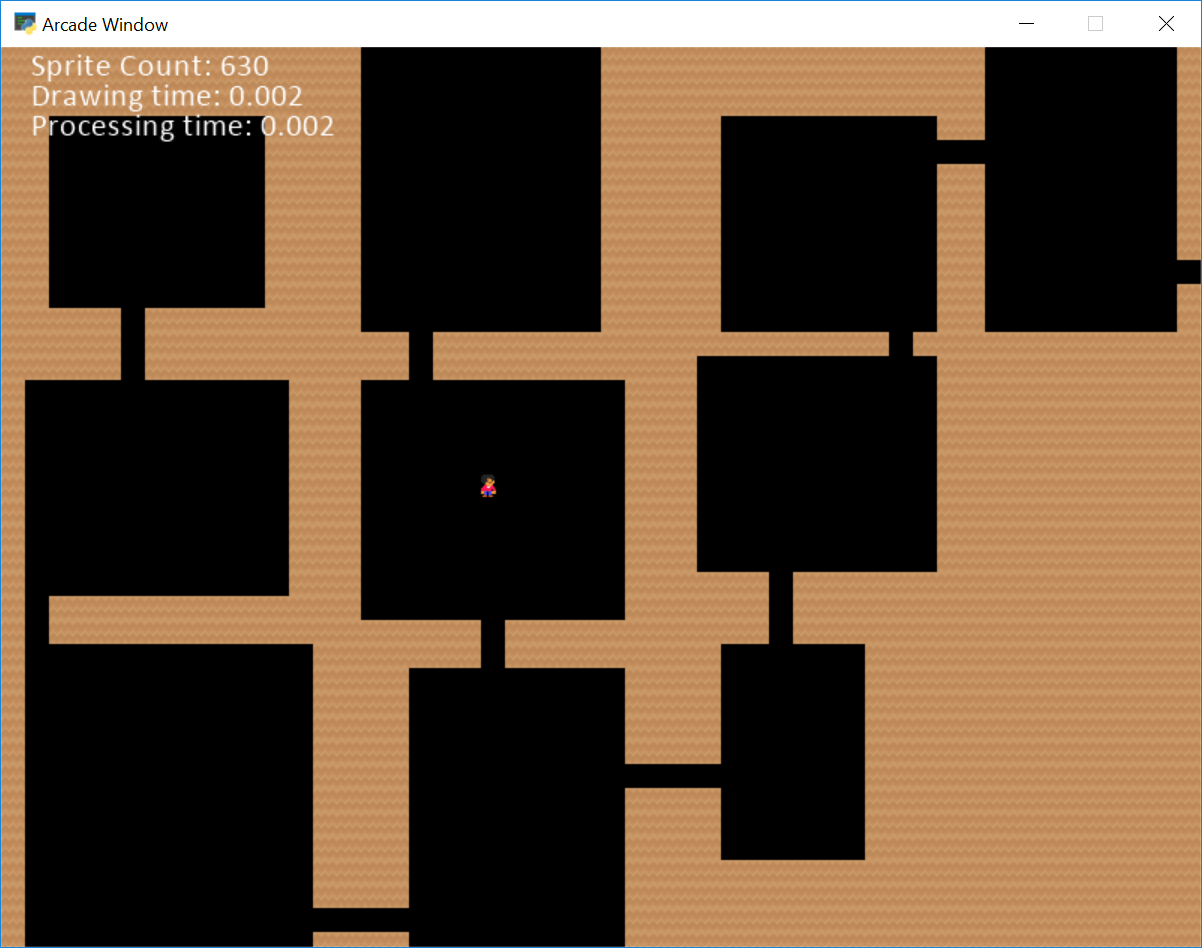

Screen shot of using Binary Space Partitioning to generate caves
procedural_caves_bsp.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
"""
This example procedurally develops a random cave based on
Binary Space Partitioning (BSP)

For more information, see:
https://roguebasin.roguelikedevelopment.org/index.php?title=Basic_BSP_Dungeon_generation
https://github.com/DanaL/RLDungeonGenerator

If Python and Arcade are installed, this example can be run from the command line with:
python -m arcade.examples.procedural_caves_bsp
"""

import random
import arcade
import timeit
import math
import os

# Sprite scaling. Make this larger, like 0.5 to zoom in and add
# 'mystery' to what you can see. Make it smaller, like 0.1 to see
# more of the map.
WALL_SPRITE_SCALING = 0.5
PLAYER_SPRITE_SCALING = 0.25

WALL_SPRITE_SIZE = 128 * WALL_SPRITE_SCALING

# How big the grid is
GRID_WIDTH = 100
GRID_HEIGHT = 100

AREA_WIDTH = GRID_WIDTH * WALL_SPRITE_SIZE
AREA_HEIGHT = GRID_HEIGHT * WALL_SPRITE_SIZE

# How fast the player moves
MOVEMENT_SPEED = 5

# How close the player can get to the edge before we scroll.
VIEWPORT_MARGIN = 300

# How big the window is
WINDOW_WIDTH = 800
WINDOW_HEIGHT = 600
WINDOW_TITLE = "Procedural Caves BSP Example"

MERGE_SPRITES = False


class Room:
    """ A room """
    def __init__(self, r, c, h, w):
        self.row = r
        self.col = c
        self.height = h
        self.width = w


class RLDungeonGenerator:
    """ Generate the dungeon """
    def __init__(self, w, h):
        """ Create the board """
        self.MAX = 15  # Cutoff for when we want to stop dividing sections
        self.width = w
        self.height = h
        self.leaves = []
        self.dungeon = []
        self.rooms = []

        for h in range(self.height):
            row = []
            for w in range(self.width):
                row.append('#')

            self.dungeon.append(row)

    def random_split(self, min_row, min_col, max_row, max_col):
        # We want to keep splitting until the sections get down to the threshold
        seg_height = max_row - min_row
        seg_width = max_col - min_col

        if seg_height < self.MAX and seg_width < self.MAX:
            self.leaves.append((min_row, min_col, max_row, max_col))
        elif seg_height < self.MAX <= seg_width:
            self.split_on_vertical(min_row, min_col, max_row, max_col)
        elif seg_height >= self.MAX > seg_width:
            self.split_on_horizontal(min_row, min_col, max_row, max_col)
        else:
            if random.random() < 0.5:
                self.split_on_horizontal(min_row, min_col, max_row, max_col)
            else:
                self.split_on_vertical(min_row, min_col, max_row, max_col)

    def split_on_horizontal(self, min_row, min_col, max_row, max_col):
        split = (min_row + max_row) // 2 + random.choice((-2, -1, 0, 1, 2))
        self.random_split(min_row, min_col, split, max_col)
        self.random_split(split + 1, min_col, max_row, max_col)

    def split_on_vertical(self, min_row, min_col, max_row, max_col):
        split = (min_col + max_col) // 2 + random.choice((-2, -1, 0, 1, 2))
        self.random_split(min_row, min_col, max_row, split)
        self.random_split(min_row, split + 1, max_row, max_col)

    def carve_rooms(self):
        for leaf in self.leaves:
            # We don't want to fill in every possible room or the
            # dungeon looks too uniform
            if random.random() > 0.80:
                continue
            section_width = leaf[3] - leaf[1]
            section_height = leaf[2] - leaf[0]

            # The actual room's height and width will be 60-100% of the
            # available section.
            room_width = round(random.randrange(60, 100) / 100 * section_width)
            room_height = round(random.randrange(60, 100) / 100 * section_height)

            # If the room doesn't occupy the entire section we are carving it from,
            # 'jiggle' it a bit in the square
            if section_height > room_height:
                room_start_row = leaf[0] + random.randrange(section_height - room_height)
            else:
                room_start_row = leaf[0]

            if section_width > room_width:
                room_start_col = leaf[1] + random.randrange(section_width - room_width)
            else:
                room_start_col = leaf[1]

            self.rooms.append(Room(room_start_row, room_start_col, room_height, room_width))
            for r in range(room_start_row, room_start_row + room_height):
                for c in range(room_start_col, room_start_col + room_width):
                    self.dungeon[r][c] = '.'

    @staticmethod
    def are_rooms_adjacent(room1, room2):
        """ See if two rooms are next to each other. """
        adj_rows = []
        adj_cols = []
        for r in range(room1.row, room1.row + room1.height):
            if room2.row <= r < room2.row + room2.height:
                adj_rows.append(r)

        for c in range(room1.col, room1.col + room1.width):
            if room2.col <= c < room2.col + room2.width:
                adj_cols.append(c)

        return adj_rows, adj_cols

    @staticmethod
    def distance_between_rooms(room1, room2):
        """ Get the distance between two rooms """
        centre1 = (room1.row + room1.height // 2, room1.col + room1.width // 2)
        centre2 = (room2.row + room2.height // 2, room2.col + room2.width // 2)

        return math.sqrt((centre1[0] - centre2[0]) ** 2 + (centre1[1] - centre2[1]) ** 2)

    def carve_corridor_between_rooms(self, room1, room2):
        """ Make a corridor between rooms """
        if room2[2] == 'rows':
            row = random.choice(room2[1])
            # Figure out which room is to the left of the other
            if room1.col + room1.width < room2[0].col:
                start_col = room1.col + room1.width
                end_col = room2[0].col
            else:
                start_col = room2[0].col + room2[0].width
                end_col = room1.col
            for c in range(start_col, end_col):
                self.dungeon[row][c] = '.'

            if end_col - start_col >= 4:
                self.dungeon[row][start_col] = '+'
                self.dungeon[row][end_col - 1] = '+'
            elif start_col == end_col - 1:
                self.dungeon[row][start_col] = '+'
        else:
            col = random.choice(room2[1])
            # Figure out which room is above the other
            if room1.row + room1.height < room2[0].row:
                start_row = room1.row + room1.height
                end_row = room2[0].row
            else:
                start_row = room2[0].row + room2[0].height
                end_row = room1.row

            for r in range(start_row, end_row):
                self.dungeon[r][col] = '.'

            if end_row - start_row >= 4:
                self.dungeon[start_row][col] = '+'
                self.dungeon[end_row - 1][col] = '+'
            elif start_row == end_row - 1:
                self.dungeon[start_row][col] = '+'

    def find_closest_unconnect_groups(self, groups, room_dict):
        """
        Find two nearby rooms that are in difference groups, draw
        a corridor between them and merge the groups
        """

        shortest_distance = 99999
        start = None
        start_group = None
        nearest = None

        for group in groups:
            for room in group:
                key = (room.row, room.col)
                for other in room_dict[key]:
                    if not other[0] in group and other[3] < shortest_distance:
                        shortest_distance = other[3]
                        start = room
                        nearest = other
                        start_group = group

        self.carve_corridor_between_rooms(start, nearest)

        # Merge the groups
        other_group = None
        for group in groups:
            if nearest[0] in group:
                other_group = group
                break

        start_group += other_group
        groups.remove(other_group)

    def connect_rooms(self):
        """
        Build a dictionary containing an entry for each room. Each bucket will
        hold a list of the adjacent rooms, weather they are adjacent along rows or
        columns and the distance between them.

        Also build the initial groups (which start of as a list of individual rooms)
        """
        groups = []
        room_dict = {}
        for room in self.rooms:
            key = (room.row, room.col)
            room_dict[key] = []
            for other in self.rooms:
                other_key = (other.row, other.col)
                if key == other_key:
                    continue
                adj = self.are_rooms_adjacent(room, other)
                if len(adj[0]) > 0:
                    room_dict[key].append((other, adj[0], 'rows', self.distance_between_rooms(room, other)))
                elif len(adj[1]) > 0:
                    room_dict[key].append((other, adj[1], 'cols', self.distance_between_rooms(room, other)))

            groups.append([room])

        while len(groups) > 1:
            self.find_closest_unconnect_groups(groups, room_dict)

    def generate_map(self):
        """ Make the map """
        self.random_split(1, 1, self.height - 1, self.width - 1)
        self.carve_rooms()
        self.connect_rooms()


class MyGame(arcade.Window):
    """
    Main application class.
    """

    def __init__(self, width, height, title):
        super().__init__(width, height, title)

        # Set the working directory (where we expect to find files) to the same
        # directory this .py file is in. You can leave this out of your own
        # code, but it is needed to easily run the examples using "python -m"
        # as mentioned at the top of this program.
        file_path = os.path.dirname(os.path.abspath(__file__))
        os.chdir(file_path)

        self.grid = None
        self.wall_list = None
        self.player_list = None
        self.player_sprite = None
        self.view_bottom = 0
        self.view_left = 0
        self.physics_engine = None

        self.processing_time = 0
        self.draw_time = 0

        arcade.set_background_color(arcade.color.BLACK)

    def setup(self):
        """ Set up the game """
        self.wall_list = arcade.SpriteList(use_spatial_hash=True)
        self.player_list = arcade.SpriteList()

        # Create cave system using a 2D grid
        dg = RLDungeonGenerator(GRID_WIDTH, GRID_HEIGHT)
        dg.generate_map()

        # Create sprites based on 2D grid
        if not MERGE_SPRITES:
            # This is the simple-to-understand method. Each grid location
            # is a sprite.
            for row in range(dg.height):
                for column in range(dg.width):
                    value = dg.dungeon[row][column]
                    if value == '#':
                        wall = arcade.Sprite(":resources:images/tiles/grassCenter.png", WALL_SPRITE_SCALING)
                        wall.center_x = column * WALL_SPRITE_SIZE + WALL_SPRITE_SIZE / 2
                        wall.center_y = row * WALL_SPRITE_SIZE + WALL_SPRITE_SIZE / 2
                        self.wall_list.append(wall)
        else:
            # This uses new Arcade 1.3.1 features, that allow me to create a
            # larger sprite with a repeating texture. So if there are multiple
            # cells in a row with a wall, we merge them into one sprite, with a
            # repeating texture for each cell. This reduces our sprite count.
            for row in range(dg.height):
                column = 0
                while column < dg.width:
                    while column < dg.width and dg.dungeon[row][column] != '#':
                        column += 1
                    start_column = column
                    while column < dg.width and dg.dungeon[row][column] == '#':
                        column += 1
                    end_column = column - 1

                    column_count = end_column - start_column + 1
                    column_mid = (start_column + end_column) / 2

                    wall = arcade.Sprite(":resources:images/tiles/grassCenter.png", WALL_SPRITE_SCALING,
                                         repeat_count_x=column_count)
                    wall.center_x = column_mid * WALL_SPRITE_SIZE + WALL_SPRITE_SIZE / 2
                    wall.center_y = row * WALL_SPRITE_SIZE + WALL_SPRITE_SIZE / 2
                    wall.width = WALL_SPRITE_SIZE * column_count
                    self.wall_list.append(wall)

        # Set up the player
        self.player_sprite = arcade.Sprite(":resources:images/animated_characters/female_person/femalePerson_idle.png",
                                           PLAYER_SPRITE_SCALING)
        self.player_list.append(self.player_sprite)

        # Randomly place the player. If we are in a wall, repeat until we aren't.
        placed = False
        while not placed:

            # Randomly position
            self.player_sprite.center_x = random.randrange(AREA_WIDTH)
            self.player_sprite.center_y = random.randrange(AREA_HEIGHT)

            # Are we in a wall?
            walls_hit = arcade.check_for_collision_with_list(self.player_sprite, self.wall_list)
            if len(walls_hit) == 0:
                # Not in a wall! Success!
                placed = True

        self.physics_engine = arcade.PhysicsEngineSimple(self.player_sprite,
                                                         self.wall_list)

    def on_draw(self):
        """ Render the screen. """

        # Start timing how long this takes
        draw_start_time = timeit.default_timer()

        # This command should happen before we start drawing. It will clear
        # the screen to the background color, and erase what we drew last frame.
        arcade.start_render()

        # Draw the sprites
        self.wall_list.draw()
        self.player_list.draw()

        # Draw info on the screen
        sprite_count = len(self.wall_list)

        output = f"Sprite Count: {sprite_count}"
        arcade.draw_text(output,
                         self.view_left + 20,
                         WINDOW_HEIGHT - 20 + self.view_bottom,
                         arcade.color.WHITE, 16)

        output = f"Drawing time: {self.draw_time:.3f}"
        arcade.draw_text(output,
                         self.view_left + 20,
                         WINDOW_HEIGHT - 40 + self.view_bottom,
                         arcade.color.WHITE, 16)

        output = f"Processing time: {self.processing_time:.3f}"
        arcade.draw_text(output,
                         self.view_left + 20,
                         WINDOW_HEIGHT - 60 + self.view_bottom,
                         arcade.color.WHITE, 16)

        self.draw_time = timeit.default_timer() - draw_start_time

    def on_key_press(self, key, modifiers):
        """Called whenever a key is pressed. """

        if key == arcade.key.UP:
            self.player_sprite.change_y = MOVEMENT_SPEED
        elif key == arcade.key.DOWN:
            self.player_sprite.change_y = -MOVEMENT_SPEED
        elif key == arcade.key.LEFT:
            self.player_sprite.change_x = -MOVEMENT_SPEED
        elif key == arcade.key.RIGHT:
            self.player_sprite.change_x = MOVEMENT_SPEED

    def on_key_release(self, key, modifiers):
        """Called when the user releases a key. """

        if key == arcade.key.UP or key == arcade.key.DOWN:
            self.player_sprite.change_y = 0
        elif key == arcade.key.LEFT or key == arcade.key.RIGHT:
            self.player_sprite.change_x = 0

    def on_update(self, delta_time):
        """ Movement and game logic """

        start_time = timeit.default_timer()

        # Move the player
        self.physics_engine.update()

        # --- Manage Scrolling ---

        # Track if we need to change the viewport

        changed = False

        # Scroll left
        left_bndry = self.view_left + VIEWPORT_MARGIN
        if self.player_sprite.left < left_bndry:
            self.view_left -= left_bndry - self.player_sprite.left
            changed = True

        # Scroll right
        right_bndry = self.view_left + WINDOW_WIDTH - VIEWPORT_MARGIN
        if self.player_sprite.right > right_bndry:
            self.view_left += self.player_sprite.right - right_bndry
            changed = True

        # Scroll up
        top_bndry = self.view_bottom + WINDOW_HEIGHT - VIEWPORT_MARGIN
        if self.player_sprite.top > top_bndry:
            self.view_bottom += self.player_sprite.top - top_bndry
            changed = True

        # Scroll down
        bottom_bndry = self.view_bottom + VIEWPORT_MARGIN
        if self.player_sprite.bottom < bottom_bndry:
            self.view_bottom -= bottom_bndry - self.player_sprite.bottom
            changed = True

        if changed:
            arcade.set_viewport(self.view_left,
                                WINDOW_WIDTH + self.view_left,
                                self.view_bottom,
                                WINDOW_HEIGHT + self.view_bottom)

        # Save the time it took to do this.
        self.processing_time = timeit.default_timer() - start_time


def main():
    """ Main function, start up window and run """
    game = MyGame(WINDOW_WIDTH, WINDOW_HEIGHT, WINDOW_TITLE)
    game.setup()
    arcade.run()


if __name__ == "__main__":
    main()
