Depth of Field Blur
depth_of_field.py

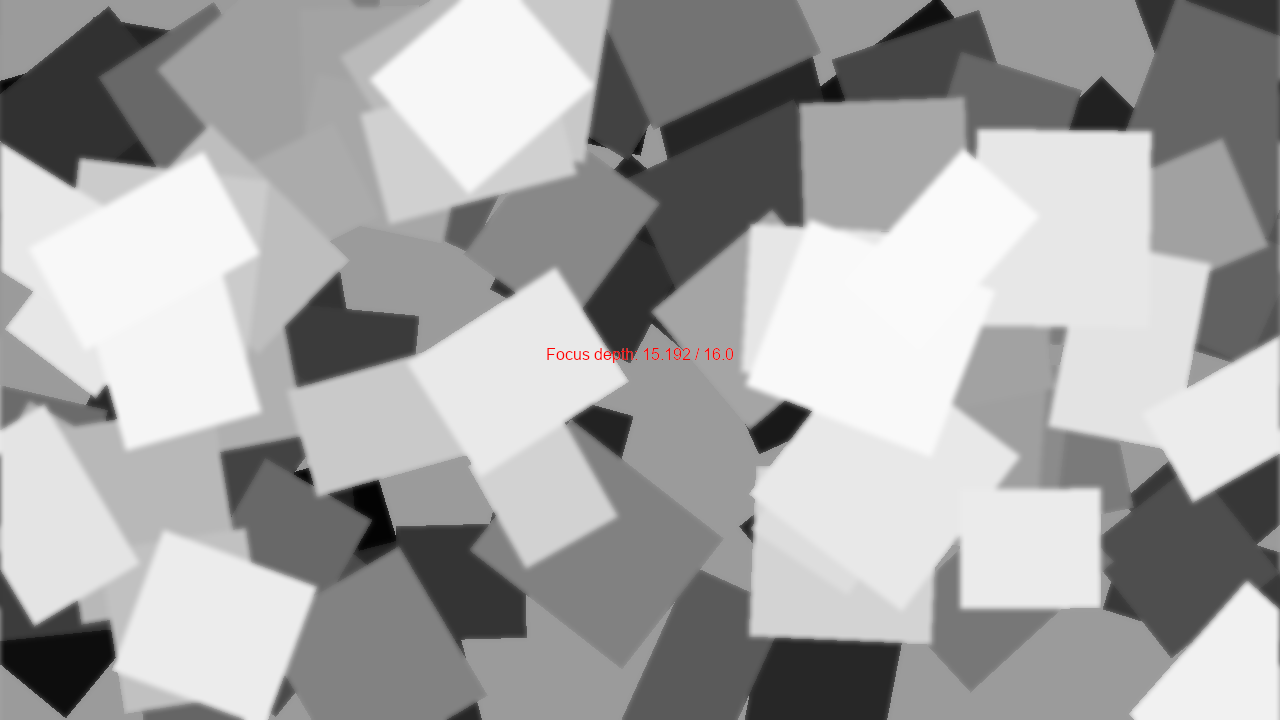

1"""An experimental depth-of-field example.
2
3It uses the depth attribute of along with blurring and shaders to
4roughly approximate depth-based blur effects. The focus bounces
5back forth automatically between a maximum and minimum depth value
6based on time. Change the speed and focus via either the constants
7at the top of the file or the arguments passed to it at the bottom of
8the file.
9
10This example works by doing the following for each frame:
11
121. Render a depth value for pixel into a buffer
132. Render a gaussian blurred version of the scene
143. For each pixel, use the current depth value to lerp between the
15 blurred and un-blurred versions of the scene.
16
17This is more expensive than rendering the scene directly, but it's
18both easier and more performant than more accurate blur approaches.
19
20If Python and Arcade are installed, this example can be run from the command line with:
21python -m arcade.examples.depth_of_field
22"""
23
24from contextlib import contextmanager
25from math import cos, pi
26from random import randint, uniform
27from textwrap import dedent
28from typing import cast
29
30from pyglet.graphics import Batch
31
32import arcade
33from arcade import get_window, SpriteList, SpriteSolidColor, Text, Window, View
34from arcade.camera.data_types import DEFAULT_NEAR_ORTHO, DEFAULT_FAR
35from arcade.color import RED
36from arcade.experimental.postprocessing import GaussianBlur
37from arcade.gl import NEAREST, Program, Texture2D, geometry
38from arcade.types import RGBA255, Color
39
40WINDOW_TITLE = "Depth of Field Example"
41
42WINDOW_WIDTH = 1280
43WINDOW_HEIGHT = 720
44BACKGROUND_GRAY = Color(155, 155, 155, 255)
45
46
47class DepthOfField:
48 """A depth-of-field effect we can use as a render context manager.
49
50 Args:
51 size:
52 The size of the buffers.
53 clear_color:
54 The color which will be used as the background.
55 """
56
57 def __init__(
58 self,
59 size: tuple[int, int] | None = None,
60 clear_color: RGBA255 = BACKGROUND_GRAY
61 ):
62 self._geo = geometry.quad_2d_fs()
63 self._win: Window = get_window()
64
65 size = cast(tuple[int, int], size or self._win.size)
66 self._clear_color: Color = Color.from_iterable(clear_color)
67
68 self.stale = True
69
70 # Set up our depth buffer to hold per-pixel depth
71 self._render_target = self._win.ctx.framebuffer(
72 color_attachments=[
73 self._win.ctx.texture(
74 size,
75 components=4,
76 filter=(NEAREST, NEAREST),
77 wrap_x=self._win.ctx.REPEAT,
78 wrap_y=self._win.ctx.REPEAT,
79 ),
80 ],
81 depth_attachment=self._win.ctx.depth_texture(size),
82 )
83
84 # Set up everything we need to perform blur and store results.
85 # This includes the blur effect, a framebuffer, and an instance
86 # variable to store the returned texture holding blur results.
87 self._blur_process = GaussianBlur(size, kernel_size=10, sigma=2.0, multiplier=2.0, step=4)
88 self._blur_target = self._win.ctx.framebuffer(
89 color_attachments=[
90 self._win.ctx.texture(
91 size,
92 components=4,
93 filter=(NEAREST, NEAREST),
94 wrap_x=self._win.ctx.REPEAT,
95 wrap_y=self._win.ctx.REPEAT,
96 )
97 ]
98 )
99 self._blurred: Texture2D | None = None
100
101 # To keep this example in one file, we use strings for our
102 # our shaders. You may want to use pathlib.Path.read_text in
103 # your own code instead.
104 self._render_program = self._win.ctx.program(
105 vertex_shader=dedent(
106 """#version 330
107
108 in vec2 in_vert;
109 in vec2 in_uv;
110
111 out vec2 out_uv;
112
113 void main(){
114 gl_Position = vec4(in_vert, 0.0, 1.0);
115 out_uv = in_uv;
116 }"""
117 ),
118 fragment_shader=dedent(
119 """#version 330
120
121 uniform sampler2D texture_0;
122 uniform sampler2D texture_1;
123 uniform sampler2D depth_0;
124
125 uniform float focus_depth;
126
127 in vec2 out_uv;
128
129 out vec4 frag_colour;
130
131 void main() {
132 float depth_val = texture(depth_0, out_uv).x;
133 float depth_adjusted = min(1.0, 2.0 * abs(depth_val - focus_depth));
134 vec4 crisp_tex = texture(texture_0, out_uv);
135 vec3 blur_tex = texture(texture_1, out_uv).rgb;
136 frag_colour = mix(crisp_tex, vec4(blur_tex, crisp_tex.a), depth_adjusted);
137 //if (depth_adjusted < 0.1){frag_colour = vec4(1.0, 0.0, 0.0, 1.0);}
138 }"""
139 ),
140 )
141
142 # Set the buffers the shader program will use
143 self._render_program["texture_0"] = 0
144 self._render_program["texture_1"] = 1
145 self._render_program["depth_0"] = 2
146
147 @property
148 def render_program(self) -> Program:
149 """The compiled shader for this effect."""
150 return self._render_program
151
152 @contextmanager
153 def draw_into(self):
154 self.stale = True
155 previous_fbo = self._win.ctx.active_framebuffer
156 try:
157 self._win.ctx.enable(self._win.ctx.DEPTH_TEST)
158 self._render_target.clear(color=self._clear_color)
159 self._render_target.use()
160 yield self._render_target
161 finally:
162 self._win.ctx.disable(self._win.ctx.DEPTH_TEST)
163 previous_fbo.use()
164
165 def process(self):
166 self._blurred = self._blur_process.render(self._render_target.color_attachments[0])
167 self._win.use()
168
169 self.stale = False
170
171 def render(self):
172 if self.stale:
173 self.process()
174
175 self._render_target.color_attachments[0].use(0)
176 self._blurred.use(1)
177 self._render_target.depth_attachment.use(2)
178 self._geo.render(self._render_program)
179
180
181class GameView(View):
182 """Window subclass to hold sprites and rendering helpers.
183
184 To keep the code simpler, this example uses a default camera. That means
185 that any sprite outside Arcade's default camera near and far render cutoffs
186 (``-100.0`` to ``100.0``) will not be drawn.
187
188 Args:
189 text_color:
190 The color of the focus indicator.
191 focus_range:
192 The range the focus value will oscillate between.
193 focus_change_speed:
194 How fast the focus bounces back and forth
195 between the ``-focus_range`` and ``focus_range``.
196 min_sprite_depth:
197 The minimum sprite depth we'll generate sprites between
198 max_sprite_depth:
199 The maximum sprite depth we'll generate sprites between.
200 """
201
202 def __init__(
203 self,
204 text_color: RGBA255 = RED,
205 focus_range: float = 16.0,
206 focus_change_speed: float = 0.1,
207 min_sprite_depth: float = DEFAULT_NEAR_ORTHO,
208 max_sprite_depth: float = DEFAULT_FAR
209 ):
210 super().__init__()
211 self.sprites: SpriteList = SpriteList()
212 self._batch = Batch()
213 self.focus_range: float = focus_range
214 self.focus_change_speed: float = focus_change_speed
215 self.indicator_label = Text(
216 f"Focus depth: {0:.3f} / {focus_range}",
217 self.width / 2,
218 self.height / 2,
219 text_color,
220 align="center",
221 anchor_x="center",
222 batch=self._batch,
223 )
224
225 # Randomize sprite depth, size, and angle, but set color from depth.
226 for _ in range(100):
227 depth = uniform(min_sprite_depth, max_sprite_depth)
228 color = Color.from_gray(int(255 * (depth + 100) / 200))
229 s = SpriteSolidColor(
230 randint(100, 200),
231 randint(100, 200),
232 uniform(20, self.width - 20),
233 uniform(20, self.height - 20),
234 color,
235 uniform(0, 360),
236 )
237 s.depth = depth
238 self.sprites.append(s)
239
240 self.dof = DepthOfField()
241
242 def on_update(self, delta_time: float):
243 time = self.window.time
244 raw_focus = self.focus_range * (cos(pi * self.focus_change_speed * time) * 0.5 + 0.5)
245 self.dof.render_program["focus_depth"] = raw_focus / self.focus_range
246 self.indicator_label.value = f"Focus depth: {raw_focus:.3f} / {self.focus_range}"
247
248 def on_draw(self):
249 self.clear()
250
251 # Render the depth-of-field layer's frame buffer
252 with self.dof.draw_into():
253 self.sprites.draw(pixelated=True)
254
255 # Draw the blurred frame buffer and then the focus display
256 window = self.window
257 window.use()
258 self.dof.render()
259 self._batch.draw()
260
261
262def main():
263 # Create a Window to show the view defined above.
264 window = arcade.Window(WINDOW_WIDTH, WINDOW_HEIGHT, WINDOW_TITLE)
265
266 # Create the view
267 app = GameView()
268
269 # Show GameView on screen
270 window.show_view(app)
271
272 # Start the arcade game loop
273 window.run()
274
275
276if __name__ == "__main__":
277 main()
