Dual Stick Shooter

This example shows how to use both joysticks on a gamepad. As gamepad layout varies a lot, you may need to adjust the mapping with SHOOTING_AXIS_SELECTION.

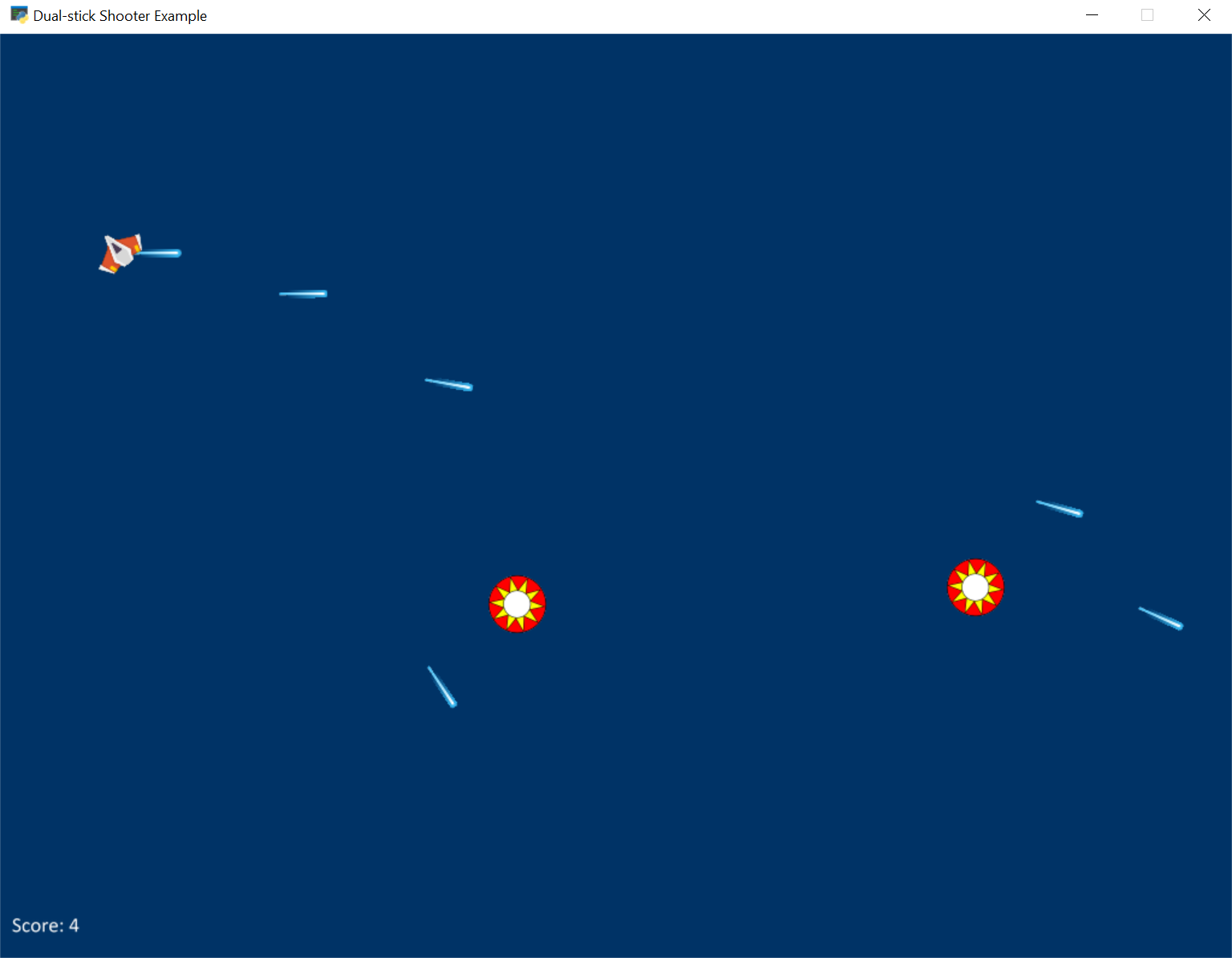

Screenshot of dual-stick shooter example
dual_stick_shooter.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
"""
Dual-stick Shooter Example

A dual-analog stick joystick is the preferred method of input. If a joystick is
not present, the game will fail back to use keyboard controls (WASD to move, arrows to shoot)

If Python and Arcade are installed, this example can be run from the command line with:
python -m arcade.examples.dual_stick_shooter
"""
import arcade
import random
import time
import math
import os
from typing import cast
import pprint

import pyglet.input.base


SCREEN_WIDTH = 1024
SCREEN_HEIGHT = 768
SCREEN_TITLE = "Dual-stick Shooter Example"
MOVEMENT_SPEED = 4
BULLET_SPEED = 10
BULLET_COOLDOWN_TICKS = 10
ENEMY_SPAWN_INTERVAL = 1
ENEMY_SPEED = 1
JOY_DEADZONE = 0.2
# An angle of "0" means "right", but the player's texture is oriented in the "up" direction.
# So an offset is needed.
ROTATE_OFFSET = -90


def dump_obj(obj):
    for key in sorted(vars(obj)):
        val = getattr(obj, key)
        print("{:30} = {} ({})".format(key, val, type(val).__name__))


def dump_joystick(joy):
    print("========== {}".format(joy))
    print("x       {}".format(joy.x))
    print("y       {}".format(joy.y))
    print("z       {}".format(joy.z))
    print("rx      {}".format(joy.rx))
    print("ry      {}".format(joy.ry))
    print("rz      {}".format(joy.rz))
    print("hat_x   {}".format(joy.hat_x))
    print("hat_y   {}".format(joy.hat_y))
    print("buttons {}".format(joy.buttons))
    print("========== Extra joy")
    dump_obj(joy)
    print("========== Extra joy.device")
    dump_obj(joy.device)
    print("========== pprint joy")
    pprint.pprint(joy)
    print("========== pprint joy.device")
    pprint.pprint(joy.device)


def dump_joystick_state(ticks, joy):
    # print("{:5.2f} {:5.2f} {:>20} {:5}_".format(1.234567, -8.2757272903, "hello", str(True)))
    fmt_str = "{:6d} "
    num_fmts = ["{:5.2f}"] * 6
    fmt_str += " ".join(num_fmts)
    fmt_str += " {:2d} {:2d} {}"
    buttons = " ".join(["{:5}".format(str(b)) for b in joy.buttons])
    print(fmt_str.format(ticks,
                         joy.x,
                         joy.y,
                         joy.z,
                         joy.rx,
                         joy.ry,
                         joy.rz,
                         joy.hat_x,
                         joy.hat_y,
                         buttons))


def get_joy_position(x, y):
    """Given position of joystick axes, return (x, y, angle_in_degrees).
    If movement is not outside of deadzone, return (None, None, None)"""
    if x > JOY_DEADZONE or x < -JOY_DEADZONE or y > JOY_DEADZONE or y < -JOY_DEADZONE:
        y = -y
        rad = math.atan2(y, x)
        angle = math.degrees(rad)
        return x, y, angle
    return None, None, None


class Player(arcade.sprite.Sprite):
    def __init__(self, filename):
        super().__init__(filename=filename, scale=0.4, center_x=SCREEN_WIDTH / 2, center_y=SCREEN_HEIGHT / 2)
        self.shoot_up_pressed = False
        self.shoot_down_pressed = False
        self.shoot_left_pressed = False
        self.shoot_right_pressed = False


class Enemy(arcade.sprite.Sprite):
    def __init__(self, x, y):
        super().__init__(filename=':resources:images/pinball/bumper.png', scale=0.5, center_x=x, center_y=y)

    def follow_sprite(self, player_sprite):
        """
        This function will move the current sprite towards whatever
        other sprite is specified as a parameter.

        We use the 'min' function here to get the sprite to line up with
        the target sprite, and not jump around if the sprite is not off
        an exact multiple of ENEMY_SPEED.
        """

        if self.center_y < player_sprite.center_y:
            self.center_y += min(ENEMY_SPEED, player_sprite.center_y - self.center_y)
        elif self.center_y > player_sprite.center_y:
            self.center_y -= min(ENEMY_SPEED, self.center_y - player_sprite.center_y)

        if self.center_x < player_sprite.center_x:
            self.center_x += min(ENEMY_SPEED, player_sprite.center_x - self.center_x)
        elif self.center_x > player_sprite.center_x:
            self.center_x -= min(ENEMY_SPEED, self.center_x - player_sprite.center_x)


class MyGame(arcade.View):
    def __init__(self):
        super().__init__()
        self.game_over = False
        self.score = 0
        self.tick = 0
        self.bullet_cooldown = 0
        self.player = Player(":resources:images/space_shooter/playerShip2_orange.png")
        self.bullet_list = arcade.SpriteList()
        self.enemy_list = arcade.SpriteList()
        self.joy = None

    def on_show(self):
        arcade.set_background_color(arcade.color.DARK_MIDNIGHT_BLUE)
        joys = self.window.joys
        for joy in joys:
            dump_joystick(joy)
        if joys:
            self.joy = joys[0]
            print("Using joystick controls: {}".format(self.joy.device))
            arcade.window_commands.schedule(self.debug_joy_state, 0.1)
        if not self.joy:
            print("No joystick present, using keyboard controls")
        arcade.window_commands.schedule(self.spawn_enemy, ENEMY_SPAWN_INTERVAL)

    def debug_joy_state(self, _delta_time):
        dump_joystick_state(self.tick, self.joy)

    def spawn_enemy(self, _elapsed):
        if self.game_over:
            return
        x = random.randint(0, SCREEN_WIDTH)
        y = random.randint(0, SCREEN_HEIGHT)
        self.enemy_list.append(Enemy(x, y))

    def on_update(self, delta_time):
        self.tick += 1
        if self.game_over:
            return

        self.bullet_cooldown += 1

        for enemy in self.enemy_list:
            cast(Enemy, enemy).follow_sprite(self.player)

        if self.joy:
            # Joystick input - movement
            move_x, move_y, move_angle = get_joy_position(self.joy.move_stick_x, self.joy.move_stick_y)
            if move_angle:
                self.player.change_x = move_x * MOVEMENT_SPEED
                self.player.change_y = move_y * MOVEMENT_SPEED
                self.player.angle = move_angle + ROTATE_OFFSET
            else:
                self.player.change_x = 0
                self.player.change_y = 0

            # Joystick input - shooting
            shoot_x, shoot_y, shoot_angle = get_joy_position(self.joy.shoot_stick_x, self.joy.shoot_stick_y)
            if shoot_angle:
                self.spawn_bullet(shoot_angle)
        else:
            # Keyboard input - shooting
            if self.player.shoot_right_pressed and self.player.shoot_up_pressed:
                self.spawn_bullet(0 + 45)
            elif self.player.shoot_up_pressed and self.player.shoot_left_pressed:
                self.spawn_bullet(90 + 45)
            elif self.player.shoot_left_pressed and self.player.shoot_down_pressed:
                self.spawn_bullet(180 + 45)
            elif self.player.shoot_down_pressed and self.player.shoot_right_pressed:
                self.spawn_bullet(270 + 45)
            elif self.player.shoot_right_pressed:
                self.spawn_bullet(0)
            elif self.player.shoot_up_pressed:
                self.spawn_bullet(90)
            elif self.player.shoot_left_pressed:
                self.spawn_bullet(180)
            elif self.player.shoot_down_pressed:
                self.spawn_bullet(270)

        self.enemy_list.update()
        self.player.update()
        self.bullet_list.update()
        ship_death_hit_list = arcade.check_for_collision_with_list(self.player,
                                                                   self.enemy_list)
        if len(ship_death_hit_list) > 0:
            self.game_over = True
        for bullet in self.bullet_list:
            bullet_killed = False
            enemy_shot_list = arcade.check_for_collision_with_list(bullet,
                                                                   self.enemy_list)
            # Loop through each colliding sprite, remove it, and add to the score.
            for enemy in enemy_shot_list:
                enemy.remove_from_sprite_lists()
                bullet.remove_from_sprite_lists()
                bullet_killed = True
                self.score += 1
            if bullet_killed:
                continue

    def on_key_press(self, key, modifiers):
        if key == arcade.key.W:
            self.player.change_y = MOVEMENT_SPEED
        elif key == arcade.key.A:
            self.player.change_x = -MOVEMENT_SPEED
        elif key == arcade.key.S:
            self.player.change_y = -MOVEMENT_SPEED
        elif key == arcade.key.D:
            self.player.change_x = MOVEMENT_SPEED
        elif key == arcade.key.RIGHT:
            self.player.shoot_right_pressed = True
        elif key == arcade.key.UP:
            self.player.shoot_up_pressed = True
        elif key == arcade.key.LEFT:
            self.player.shoot_left_pressed = True
        elif key == arcade.key.DOWN:
            self.player.shoot_down_pressed = True

        rad = math.atan2(self.player.change_y, self.player.change_x)
        self.player.angle = math.degrees(rad) + ROTATE_OFFSET

    def on_key_release(self, key, modifiers):
        if key == arcade.key.W:
            self.player.change_y = 0
        elif key == arcade.key.A:
            self.player.change_x = 0
        elif key == arcade.key.S:
            self.player.change_y = 0
        elif key == arcade.key.D:
            self.player.change_x = 0
        elif key == arcade.key.RIGHT:
            self.player.shoot_right_pressed = False
        elif key == arcade.key.UP:
            self.player.shoot_up_pressed = False
        elif key == arcade.key.LEFT:
            self.player.shoot_left_pressed = False
        elif key == arcade.key.DOWN:
            self.player.shoot_down_pressed = False

        rad = math.atan2(self.player.change_y, self.player.change_x)
        self.player.angle = math.degrees(rad) + ROTATE_OFFSET

    def spawn_bullet(self, angle_in_deg):
        # only allow bullet to spawn on an interval
        if self.bullet_cooldown < BULLET_COOLDOWN_TICKS:
            return
        self.bullet_cooldown = 0

        bullet = arcade.Sprite(":resources:images/space_shooter/laserBlue01.png", 0.75)

        # Position the bullet at the player's current location
        start_x = self.player.center_x
        start_y = self.player.center_y
        bullet.center_x = start_x
        bullet.center_y = start_y

        # angle the bullet visually
        bullet.angle = angle_in_deg
        angle_in_rad = math.radians(angle_in_deg)

        # set bullet's movement direction
        bullet.change_x = math.cos(angle_in_rad) * BULLET_SPEED
        bullet.change_y = math.sin(angle_in_rad) * BULLET_SPEED

        # Add the bullet to the appropriate lists
        self.bullet_list.append(bullet)

    def on_draw(self):
        # clear screen and start render process
        self.clear()

        # draw game items
        self.bullet_list.draw()
        self.enemy_list.draw()
        self.player.draw()

        # Put the score on the screen.
        output = f"Score: {self.score}"
        arcade.draw_text(output, 10, 20, arcade.color.WHITE, 14)

        # Game over message
        if self.game_over:
            arcade.draw_text("Game Over",
                             SCREEN_WIDTH / 2,
                             SCREEN_HEIGHT / 2,
                             arcade.color.WHITE, 100,
                             width=SCREEN_WIDTH,
                             align="center",
                             anchor_x="center",
                             anchor_y="center")


class JoyConfigView(arcade.View):
    """A View that allows a user to interactively configure their joystick"""
    REGISTRATION_PAUSE = 1.5
    NO_JOYSTICK_PAUSE = 2.0
    JOY_ATTRS = ("x", "y", "z", "rx", "ry", "rz")

    def __init__(self, joy_method_names, joysticks, next_view, width, height):
        super().__init__()
        self.next_view = next_view
        self.width = width
        self.height = height
        self.msg = ""
        self.script = self.joy_config_script()
        self.joys = joysticks
        arcade.set_background_color(arcade.color.WHITE)
        if len(joysticks) > 0:
            self.joy = joysticks[0]
            self.joy_method_names = joy_method_names
            self.axis_ranges = {}

    def config_axis(self, joy_axis_label, method_name):
        self.msg = joy_axis_label
        self.axis_ranges = {a: 0.0 for a in self.JOY_ATTRS}
        while max([v for k, v in self.axis_ranges.items()]) < 0.85:
            for attr, farthest_val in self.axis_ranges.items():
                cur_val = getattr(self.joy, attr)
                if abs(cur_val) > abs(farthest_val):
                    self.axis_ranges[attr] = abs(cur_val)
            yield

        max_val = 0.0
        max_attr = None
        for attr, farthest_val in self.axis_ranges.items():
            if farthest_val > max_val:
                max_attr = attr
                max_val = farthest_val
        self.msg = "Registered!"

        setattr(pyglet.input.base.Joystick, method_name, property(lambda that: getattr(that, max_attr), None))

        # pause briefly after registering an axis
        yield from self._pause(self.REGISTRATION_PAUSE)

    def joy_config_script(self):
        if len(self.joys) == 0:
            self.msg = "No joysticks found!  Use keyboard controls."
            yield from self._pause(self.NO_JOYSTICK_PAUSE)
            return

        for joy_axis_label, method_name in self.joy_method_names:
            yield from self.config_axis(joy_axis_label, method_name)

    def on_update(self, delta_time):
        try:
            next(self.script)
        except StopIteration:
            self.window.show_view(self.next_view)

    def on_draw(self):
        self.clear()
        arcade.draw_text("Configure your joystick", self.width / 2, self.height / 2 + 100,
                         arcade.color.BLACK, font_size=32, anchor_x="center")
        arcade.draw_text(self.msg, self.width / 2, self.height / 2,
                         arcade.color.BLACK, font_size=24, anchor_x="center")

    def _pause(self, delay):
        """Block a generator from advancing for the given delay. Call with 'yield from self._pause(1.0)"""
        start = time.time()
        end = start + delay
        while time.time() < end:
            yield


if __name__ == "__main__":
    window = arcade.Window(SCREEN_WIDTH, SCREEN_HEIGHT, SCREEN_TITLE)

    # Set the working directory (where we expect to find files) to the same
    # directory this .py file is in. You can leave this out of your own
    # code, but it is needed to easily run the examples using "python -m"
    # as mentioned at the top of this program.
    file_path = os.path.dirname(os.path.abspath(__file__))
    os.chdir(file_path)

    window.joys = arcade.get_joysticks()
    for j in window.joys:
        j.open()
    joy_config_method_names = (
        ("Move the movement stick left or right", "move_stick_x"),
        ("Move the movement stick up or down", "move_stick_y"),
        ("Move the shooting stick left or right", "shoot_stick_x"),
        ("Move the shooting stick up or down", "shoot_stick_y"),
    )
    game = MyGame()
    window.show_view(JoyConfigView(joy_config_method_names, window.joys, game, SCREEN_WIDTH, SCREEN_HEIGHT))
    arcade.run()
