Easing Example 1

Easing Example

Source

easing_example.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
"""

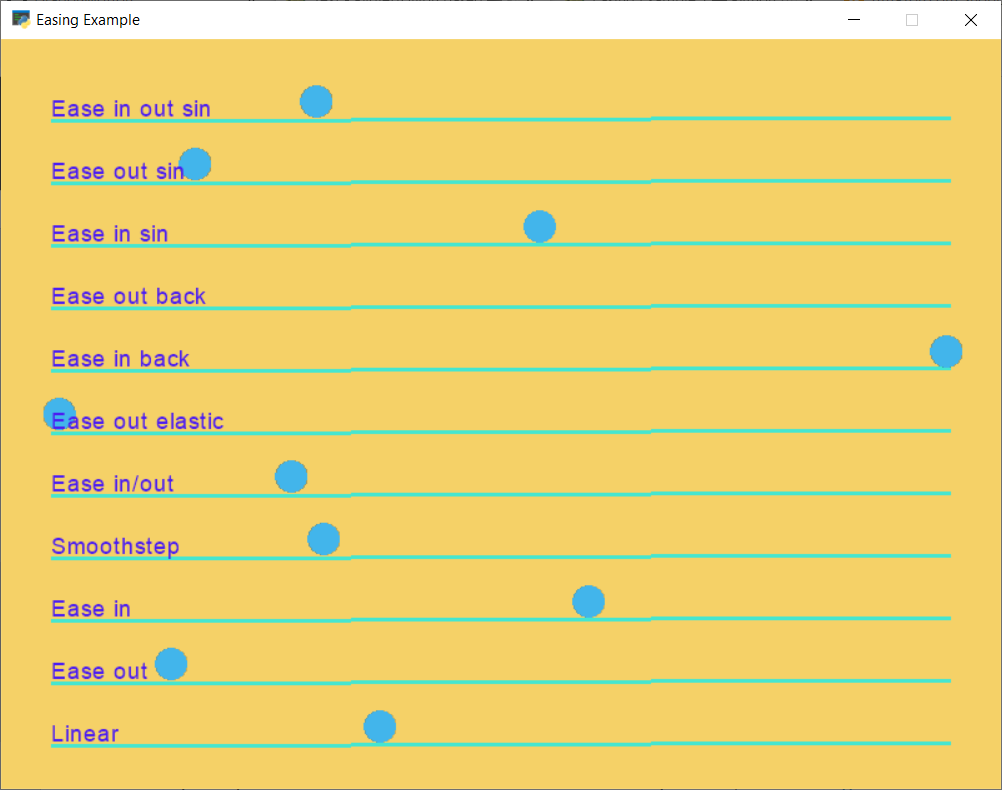

Example showing how to use the easing functions for position.

See:
https://easings.net/
...for a great guide on the theory behind how easings can work.

See example 2 for how to use easings for angles.

If Python and Arcade are installed, this example can be run from the command line with:
python -m arcade.examples.easing_example_1
"""
import arcade

SPRITE_SCALING = 0.5

SCREEN_WIDTH = 800
SCREEN_HEIGHT = 600
SCREEN_TITLE = "Easing Example"

BACKGROUND_COLOR = "#F5D167"
TEXT_COLOR = "#4B1DF2"
BALL_COLOR = "#42B5EB"
LINE_COLOR = "#45E6D0"
LINE_WIDTH = 3

X_START = 40
X_END = 760
Y_INTERVAL = 50
BALL_RADIUS = 13
TIME = 3.0


class EasingCircle(arcade.SpriteCircle):
    """ Player class """

    def __init__(self, radius, color):
        """ Set up the player """

        # Call the parent init
        super().__init__(radius, color)

        self.easing_x_data = None
        self.easing_y_data = None

    def on_update(self, delta_time: float = 1 / 60):
        if self.easing_x_data is not None:
            done, self.center_x = arcade.ease_update(self.easing_x_data, delta_time)
            if done:
                x = X_START
                if self.center_x < SCREEN_WIDTH / 2:
                    x = X_END
                ex, ey = arcade.ease_position(self.position,
                                              (x, self.center_y),
                                              rate=180,
                                              ease_function=self.easing_x_data.ease_function)
                self.easing_x_data = ex

        if self.easing_y_data is not None:
            done, self.center_y = arcade.ease_update(self.easing_y_data, delta_time)
            if done:
                self.easing_y_data = None


class MyGame(arcade.Window):
    """ Main application class. """

    def __init__(self, width, height, title):
        """ Initializer """

        # Call the parent class initializer
        super().__init__(width, height, title)

        # Set the background color
        arcade.set_background_color(arcade.color_from_hex_string(BACKGROUND_COLOR))

        self.ball_list = None
        self.text_list = []
        self.lines = None

    def setup(self):
        """ Set up the game and initialize the variables. """

        # Sprite lists
        self.ball_list = arcade.SpriteList()
        self.lines = arcade.ShapeElementList()

        def create_ball(ball_y, ease_function):
            ball = EasingCircle(BALL_RADIUS, arcade.color_from_hex_string(BALL_COLOR))
            ball.position = X_START, ball_y
            p1 = ball.position
            p2 = (X_END, ball_y)
            ex, ey = arcade.ease_position(p1, p2, time=TIME, ease_function=ease_function)
            ball.ease_function = ease_function
            ball.easing_x_data = ex
            ball.easing_y_data = ey
            return ball

        def create_line(line_y):
            line = arcade.create_line(X_START, line_y - BALL_RADIUS - LINE_WIDTH,
                                      X_END, line_y - BALL_RADIUS,
                                      line_color, line_width=LINE_WIDTH)
            return line

        def create_text(text_string):
            text = arcade.Text(text_string, X_START, y - BALL_RADIUS, color=text_color, font_size=14)
            return text

        def add_item(item_y, ease_function, text):
            ball = create_ball(item_y, ease_function)
            self.ball_list.append(ball)
            text = create_text(text)
            self.text_list.append(text)
            line = create_line(item_y)
            self.lines.append(line)

        text_color = arcade.color_from_hex_string(TEXT_COLOR)
        line_color = arcade.color_from_hex_string(LINE_COLOR)

        y = Y_INTERVAL
        add_item(y, arcade.linear, "Linear")

        y += Y_INTERVAL
        add_item(y, arcade.ease_out, "Ease out")

        y += Y_INTERVAL
        add_item(y, arcade.ease_in, "Ease in")

        y += Y_INTERVAL
        add_item(y, arcade.smoothstep, "Smoothstep")

        y += Y_INTERVAL
        add_item(y, arcade.ease_in_out, "Ease in/out")

        y += Y_INTERVAL
        add_item(y, arcade.ease_out_elastic, "Ease out elastic")

        y += Y_INTERVAL
        add_item(y, arcade.ease_in_back, "Ease in back")

        y += Y_INTERVAL
        add_item(y, arcade.ease_out_back, "Ease out back")

        y += Y_INTERVAL
        add_item(y, arcade.ease_in_sin, "Ease in sin")

        y += Y_INTERVAL
        add_item(y, arcade.ease_out_sin, "Ease out sin")

        y += Y_INTERVAL
        add_item(y, arcade.ease_in_out_sin, "Ease in out sin")

    def on_draw(self):
        """ Render the screen. """

        # This command has to happen before we start drawing
        self.clear()

        self.lines.draw()

        # Draw all the sprites.
        self.ball_list.draw()

        for text in self.text_list:
            text.draw()

    def on_update(self, delta_time):
        """ Movement and game logic """

        # Call update on all sprites (The sprites don't do much in this
        # example though.)
        self.ball_list.on_update(delta_time)


def main():
    """ Main function """
    window = MyGame(SCREEN_WIDTH, SCREEN_HEIGHT, SCREEN_TITLE)
    window.setup()
    arcade.run()


if __name__ == "__main__":
    main()
